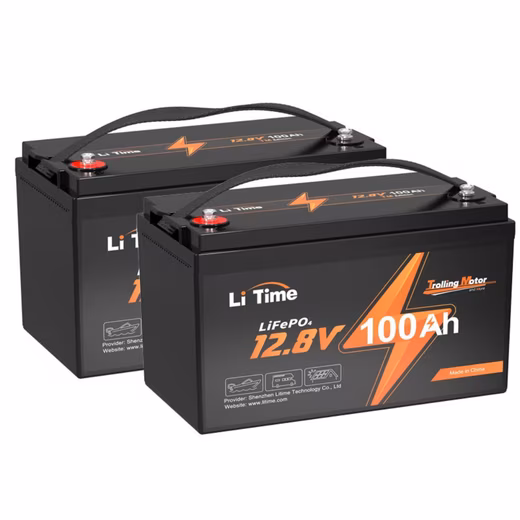

12V 100Ah TM LiFePO4 Battery Boat Battery with Low Temperature Protection Solar Rechargeable Batteries

Product Description

Item no. S05FL0A9ADS

Class A LiFePO4 cell & 10 years service life

Extra Triple Protection BMS for Outboard Motor

With low-temperature protection and automatic overload protection

Compared to lead-acid batteries, this battery is faster to charge and easier to use.

Energy expandable from 1280 Wh to 20480 Wh

Weniger anzeigen

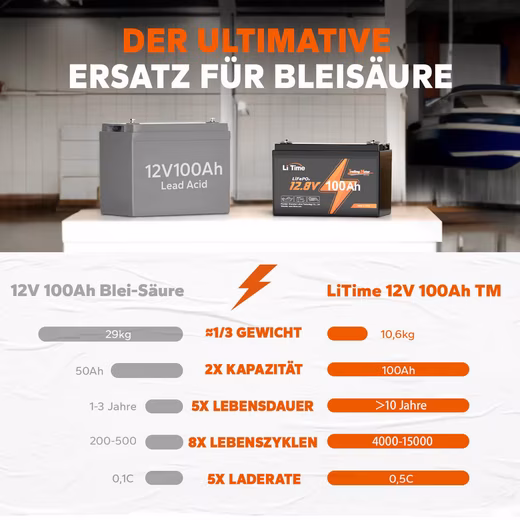

The Ultimate Replacement for Lead-Acid Battery

The 12V 100Ah TM LiFePO4 battery weighs only 10.6 kg, making it about one-fifth as heavy as a 12V 200Ah lead-acid battery (approx. 58.9 kg). However, it has the same energy and is therefore easier to transport, charge faster and more comfortable to use.

Take your fishing to the next level

The 12V 100Ah TM LiFePO4 deep cycle battery supports a maximum discharge current of 300A to 500A for five seconds, providing a fast and reliable power supply. This allows you to control your trolling motor more smoothly and precisely. Thanks to their improved ability to handle sudden and heavy loads, you can reach your destination faster or catch fish more efficiently. You also have ultimate control over your boat.

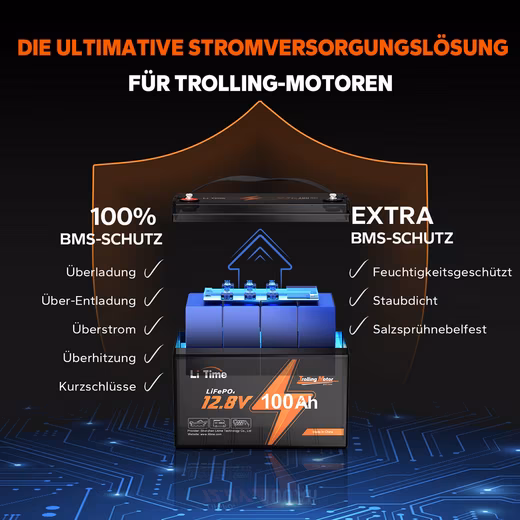

Extra triple protection BMS for trolling motors

The 12V 100Ah TM LiFePO4 battery from LiTime is optimized for use with trolling motors. Its BMS offers triple protection against dust, water and salt spray, as well as 100% protection against overcharge, over-discharge, over-current, overheating and short circuits. This battery is designed for harsh environments such as rainy or coastal areas, as well as dusty and wet conditions. It offers long-lasting, worry-free performance with an extended lifespan.

Better resistance to big waves

The advanced built-in TVS provides excellent protection against power surges and surges, and provides improved shock resistance, keeping your battery and motor stable and protected even in rough waters. Whether you’re trolling for big fish or cruising for leisure, the 12V 100Ah TM LiFePO4 battery gives you the confidence to enjoy your time on the water to the fullest.

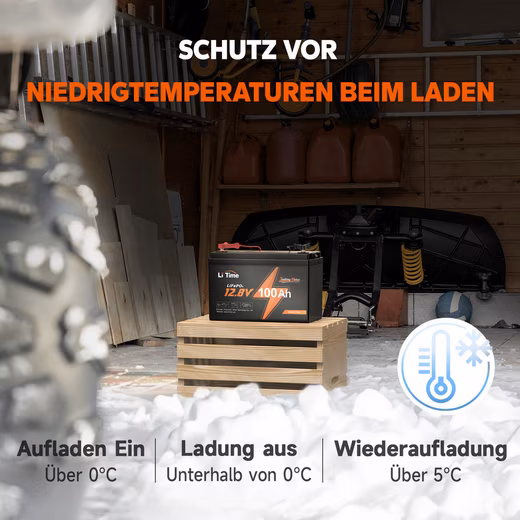

Low Temperature Shutdown Protection

Maximize the life of your battery and the efficiency of the charging process with the low-temperature charging protection. So you are safe and efficient even in the coldest conditions.

Class A LiFePO4 Cell & 10 Year Life

LiTime’s 12V 100AhTM Lithium Battery uses Grade A LiFePO4 cells for exceptional quality, higher energy density and more power. It is UL-certified and thus offers the highest level of safety. The 12V 100Ah TM LiFePO4 battery has an impressive 10-year lifespan, with 4000+ cycles at 100% DOD (6000 cycles at 80% DOD, 15000 cycles at 60% DOD). In contrast, SLA/AGM batteries usually only last 3 years with 200 – 500 cycles.

Fully upgraded BMS

Designed for demanding environments such as rainy or coastal areas, as well as dusty and humid conditions. The 12V 100Ah TM LiFePO4 deep cycle battery ensures reliable, long-lasting performance with a reduced risk of damage and extended life.

20.48 kWh – Massive power expansion

Up to 16 pieces of 12V 100Ah TM LiFePO4 batteries can be connected together to increase the usable energy from 1280 Wh to an impressive 20480 Wh – ideal for longer operating times and greater energy needs. This battery is not only suitable for trolling motors, but also for RVs, solar panels, and as a backup power supply for your home.

3 Ways to Charge

With the ultra-fast charging speed of this 12V 100AhTM deep cycle LiFePO4 battery, you will always be optimally energized! Three easy ways to recharge: via a LiFePO4 charger, solar panels or a generator.

*Important note:

If the OT terminals are fixed directly with screws and are less than 2mm thick, please add the gaskets we offer to ensure secure fastening.

SPECIFICATIONS

BATTERY

Cell Type

LiFePO4 Prismatic

Warranty

5 years

Cycle Lifetime

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15000 cycles at 60% DOD

Nominal voltage

12.8V

Nominal Capacity

100Ah

Energy

1280Wh

Max. Expansion (Parallel & Series)

4P4S

Internal resistance

≤40mΩ

Certifications

UL-1973, FCC, CE, UN38.3

BMS

BMS

100A

Max. Continuous Output Power

1280W

Max. Continuous Charging Current

100A

Max. Continuous Discharge Current

100A

Max. discharge current 1 seconds

500A

CARGO

Method of charging

CC/CV

Charging voltage

14.4±0.2V

Recommended charging current

20A(0.2C)

TEMPERATURE

Temperature Range – Charge

0°C ~ 50 °C / 32°F ~ 122 °F

Temperature Range – Discharge

-20°C ~ 60°C / -4°F ~ 140°F

Temperature Range – Storage

-10°C ~ 50°C / 14°F ~ 122°F

Recommended Storage Temperature

10°C ~ 35°C / 50°F ~ 95°F

Low Temperature Charge Protection Charging Stop Temperature

0°C / 32°F

Low Temperature Charging Protection Resume Charging Temperature

5°C / 41°F

Low Temperature Discharge Protection Discharge Stop Temperature

-20°C / -4°F

Discharge protection at low temperature Resume discharge temperature

-10°C / 14°F

OTHERS

Connection terminals

M8 Screws

Weight approx.

10.6 kg

Size

L329*W172*H214 mm;

(L13*W6.77*H8.43 in)

Housing material

Plastic(ABS)

Protection class

IP65

FAQ

Can I use it to start my car/boat engine?

No. LiTime LiFePO4 lithium batteries are not intended as starter batteries, but as energy storage, please do not use them to start devices.
